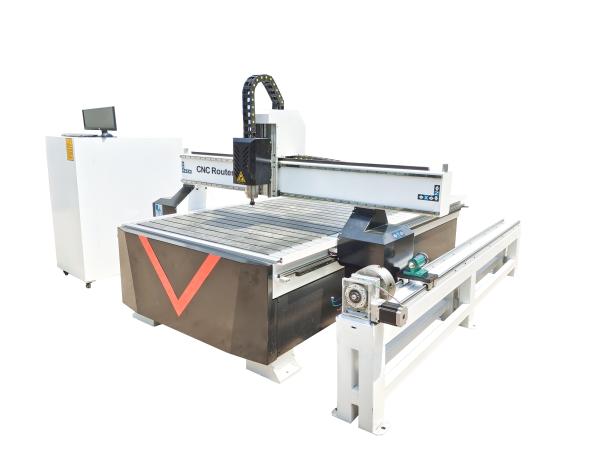

Rotary Four Axis Wood Carving Cnc Router Woodworking Machinery Wood
Cnc Milling Machine Price
Applications:
1. Woodworking industry Doors; Cabinets; Tables; Chairs. Wave
plate, fine pattern, antique furniture, wooden door, screen, craft
sash, composite gates, cupboard doors, interior doors, sofa legs,
headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board;
Meeting sign board; Billboard Advertising filed, sign making,
acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
3. Die industry A sculpture of copper, aluminum, iron and other
metal molds, as well as artificial marble, sand , plastic sheeting,
PVC pipe, and other non-metallic mold.
4. Artwork and Decoration wood crafts; gift box; jewelry box
5. Others Relief sculpture and 3D engraving and Cylindrical object.
Machine Parameter
| Control system | DSP A18S controller |
| Spindle | 3.2kw water Cooling spindle 24000rpm |
| Table | T Slot |
| Motor | 450B step motor (Chuangwei) |
| Driving system | 860H driver |
| X, Y Axis structure | 1.5M helical rack |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Chinese 20mm linear rails |
| Inverter | Best Brand 3.7kw |
| Machine working size | X Axis-1300mm ,Y Axis-2500mm ,Z Axis-350mm |
| Machine Size | Length 3150mm ,Wide 2280mm ,High 1780mm |
| Machine Max.travel speed | 22m/min |
| Machine Max.working speed | 18m/min |
| Machine Voltage | 1PH ,220V ,50/60HZ |
| Machine weight | 855kg |
Machine advantage
| Controller from DSP A18S. |
| Design made by steel 8mm&6mm. |
| 20mm Guide way from Hiwin |
| Tools sensor for original point setting. |
| Inverter Brand Changsha BEST, driver brand Leadshine 860H. |
| Rotary can add additional if necessary. |
| CCD camera and oscillating cutting head can be added optional. |
| Some accessory send with machine free. |
